Gig Performer to send midi to Resolume via MTP

Hi, as the title suggests, i’m trying to get gig performer to send midi to resolume to trigger clips as specific times. I will be integrating a midi controller at some point but initially i just want something very basic.

I have managed to get midi out of gig performer (i use the streaming audio player with markers and the markers trigger an action to send a note on midi message) and that goes via MTP and using the midi router and the virtual port, i can see messages coming into Resolume

So far, so good!! However this is where things start to get a bit weird. Firstly, Resolume doesn’t seem to recognise these notes when trying to perform a midi learn. Ok, no problem, i will just set this up manually. i create a note shortcut to trigger the clip with the note value i see in the midi monitor.

This seems to work if i have the midi input and output set to the bome virtual port BUT i am now unable to select any other clips as it immediately jumps back to the clip with the midi note shortcut even if that isn’t being triggered by gig performer at the time. its almost like a feedback loop of some kind where the output of the virtual port goes straight back into the input. Something weird like that anyway.

I’d appreciate any help to get this working. thanks

Hi and welcome to the Bome community!

My guess is that you haven’t set up your device selection correctly so that Resolume may indeed also be triggering clips.

For more information about device selection, see this tutorial.

If this is not the problem, perhaps you can post the current version of the project file and I can take a look.

Steve Caldwell
Bome Customer Care


Also available for paid consulting services: bome@sniz.biz

Hi, thanks for the reply. its honestly the most basic configuration in MTP that you could think of. I will attach the file and some screenshots of gig performer and resolume

Yes, that is pretty basic. Please post screenshots of your MIDI setting in Gig Performer and also in Resolume.

Also when GP sends MIDI messages, please open the global MIDI monitor in GP an show to show what MIDI is being sent.

If Resolume has a similar function, maybe you could also monitor there what MIDI is being received.

Steve Caldwell
Bome Customer Care


Also available for paid consulting services: bome@sniz.biz

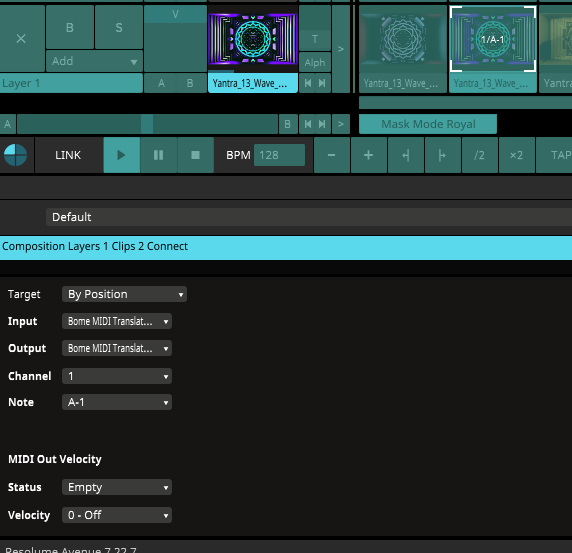

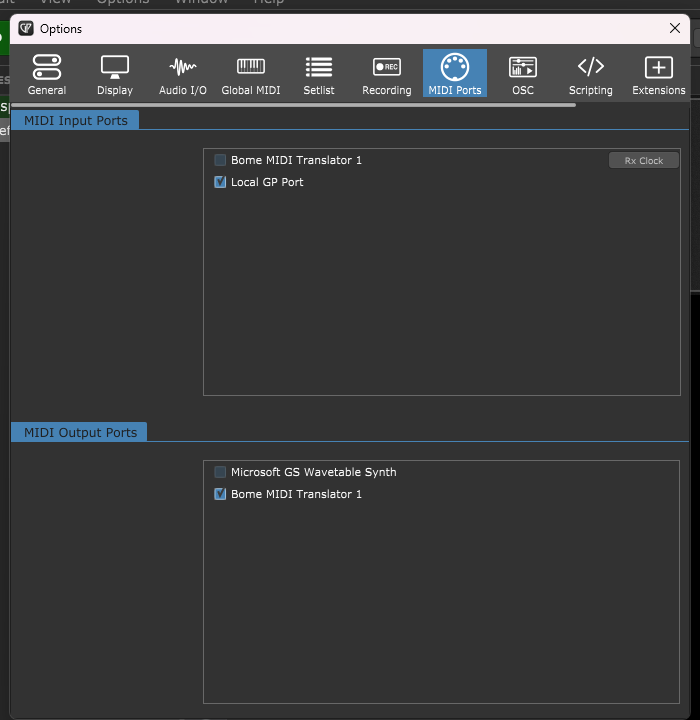

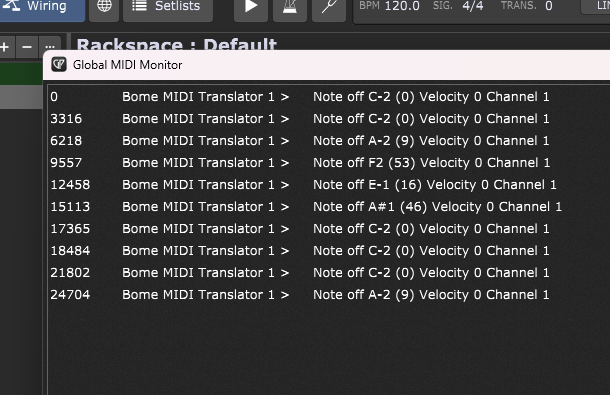

Hi, i have attached all the screenshots again. they must have not uploaded correctly in my previous post.

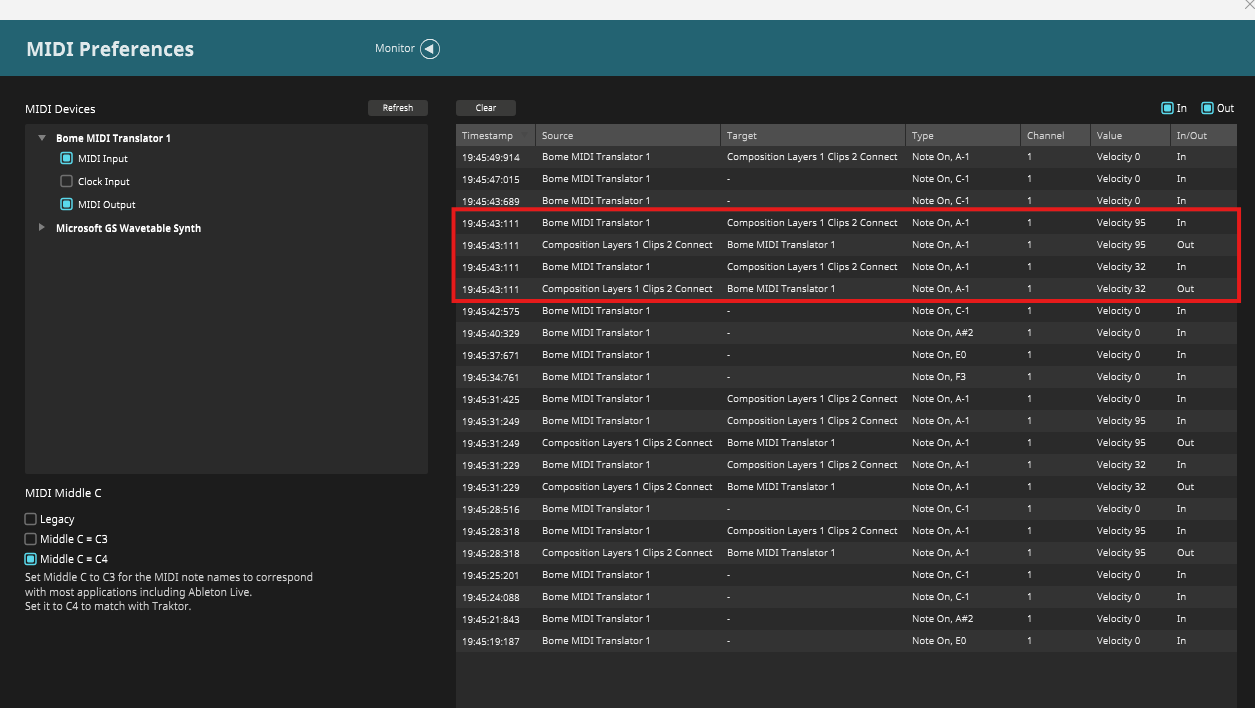

these are the settings and midi monitors in GP and Resolume. For the screenshot for Resolume with the red rectangle around 4 entries - these appear when i click on any other clips in the layers which then immediately snaps back to the one i have the midi assignment.

let me know if its making any sense or not.

(attachments)



Turn Off output of BMT1 on Resolume. I don’t think you want Resolume triggering clips from itself.

Steve Caldwell
Bome Customer Care


Also available for paid consulting services: bome@sniz.biz
