How to control A&H with a M-Wave SMC-Mixer

Bome Products
1

Not entirely sure where to start or if I need to buy another license.

I have connected my A&H CQ-18T with my BomeBox, with a WIDI Master connected. I have connected a bluetooth MIDI mixer to it. SMC-Mixer-企业官网

When I move one of the faders, I see the following Bome Network:

1625631 MIDI IN  From BomeBox B0 28 01
1625631 MIDI OUT BomeBox Virtual Out B0 28 01
1625634 MIDI IN  From BomeBox B0 28 02
1625634 MIDI OUT BomeBox Virtual Out B0 28 02
1625680 MIDI IN  From BomeBox B0 28 03
1625680 MIDI OUT BomeBox Virtual Out B0 28 03
1625709 MIDI IN  From BomeBox B0 28 04
1625709 MIDI OUT BomeBox Virtual Out B0 28 04
1625761 MIDI IN  From BomeBox B0 28 05
1625761 MIDI OUT BomeBox Virtual Out B0 28 05
1625852 MIDI IN  From BomeBox B0 28 06
1625852 MIDI OUT BomeBox Virtual Out B0 28 06

I’d like to map this, and the other faders, to control the A&H.

Do I need Bome MIDI Translator Pro?

2

Hi,

The below represents moving Main LR values with the control that you indicated based on this document. Mind you the scaling may not be right, however but I didn’t ake the time to figure out the scaling which is on page 15.

But yes, you would need to purchase Bome MIDI Translator Pro and develop your application on PC or Mac, then upload it to BomeBox if you want to run it without a computer.

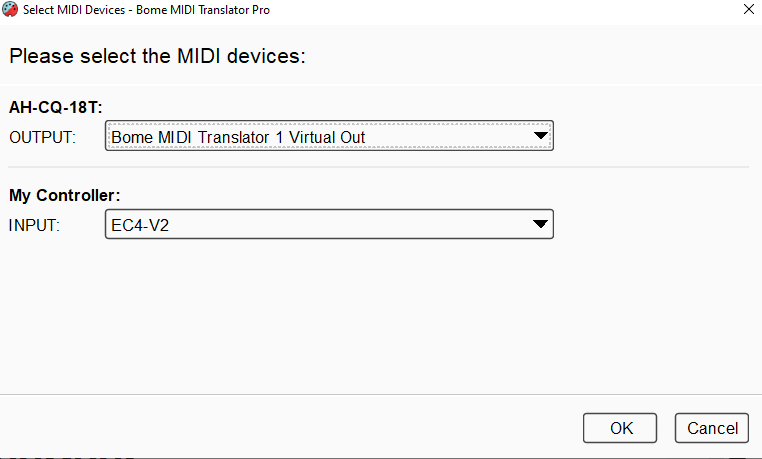

My aliases are set up as follows:

image762×459 8.1 KB

You would set them up to point to the correct physical ports depending on whether running the project on your computer or BomeBox.

You can learn more about aliases from this tutorial.

Translator 1.0 addresses the question regarding the specific input your controller is sending.

Steve Caldwell
Bome Customer Care

Also available for paid consulting services: bome@sniz.biz

CQ-18T-LR-Fader-Example.bmtp (1.5 KB)
