Logic, Platform M+ and CC controllers

Translation Projects
1

Hi,

I’m curious if someone has managed to make a script for Logic and Platform M+ in order to use the faders for CC.. Thanks in advance for your help!

2

The attached should work for the first 2 faders. I set the outgoing cc number using local variable pp in rules. I take the MSB of the fader value for the value of the CC.

//set outgoing cc number
pp=1

Log "Log Fader 2 value=%rr% or 0x%02X rr%"

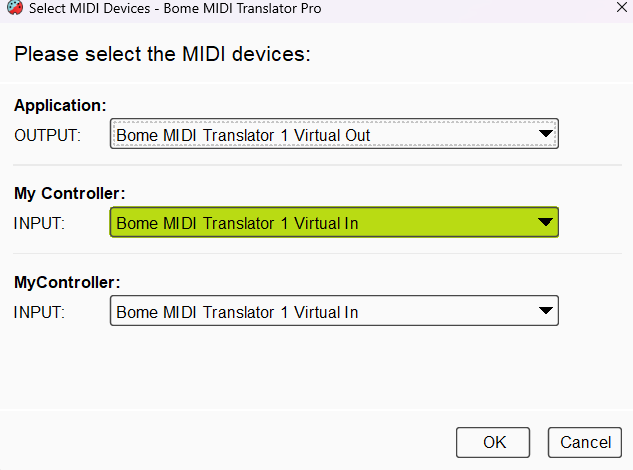

I set up my aliases as follows but you will need to set them to your devices.

image633×470 10.5 KB

You can learn more about aliases from this tutorial.

I set up my device selection at the preset level.

For more information about device selection, see this tutorial.

Platform-m±fader-to-cc-example.bmtp (2.1 KB)

Steve Caldwell
Bome Customer Care

Also available for paid consulting services: bome@sniz.biz
3

Thanks a lot Steve! I’ll try it…:+1:
