Hello !

I would like to have some help to modify the script « notes to mouse movement » :

A midi note triggers to move the mouse to specific coordinates

2

Hi and welcome to the Bome community!

Is there any logic or type of formula you would use to determine the mouse coordinates or would it just be a random mapping.

For a random mapping, something like this would work

Incoming: Note-ON MIDI CH1 set Note to pp

// Lets say note number is pp, qq=x and rr=y
// see if the note maps to anything
// default qq =-1
qq=-1

if pp==25 then qq=15
if pp==25 then rr=123

if pp==26 then qq=23
if pp==26 then rr=18
//...  add more note conditions here.
if qq<0 then exit rules, skip outgoing action

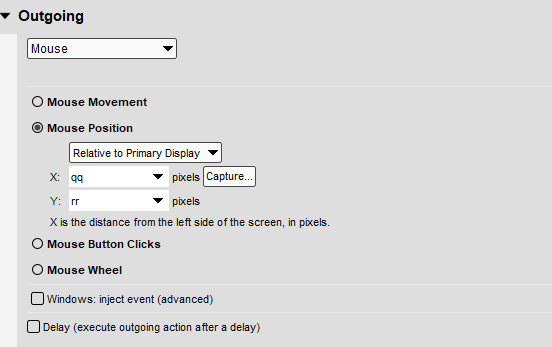

image552×347 6.04 KB

Steve Caldwell
Bome Customer Care

Also available for paid consulting services: bome@sniz.biz

PS. I got your request for MIDIBuddy which would not be needed for this type of project. Now if you need to convert mouse coordinates to notes, then MIDIBuddy would be needed.

3

my goal is to convert single midi notes to click on specific position on screen

the screen will be showing xotopad : XotoPad - The MIDI controller for Windows touch-screens

which can trigger chords (normally it’s for windows touchscreen)

so it will not be random mapping.

for example C1 should trigger the first pad C#1 should trigger the second pad etc…

EDIT: Okay I tried and it seems to work : the click trigger the pad but the note is very short.
is there any solution to make the click or the note longer ?

4

Do you click on the pad? Maybe you need a click “down” action and then a delay with a click “up” action. Or maybe click “down” would be with note-on and click “up” with note off.

Maybe you can share the project file.

Steve Caldwell
Bome Customer Care

Also available for paid consulting services: bome@sniz.biz
5

‘Or maybe click “down” would be with note-on and click “up” with note off.’

great idea ! how can I do that ?

6

With 2 Translators. One clicks down at the desired position with note-on (Translator 1.0). The other sends click up on note-off (1.1).

See the attached example.

I set up my alias a follows. You will need to adjust it to point to your incoming keyboard.

image230×190 3.22 KB

You can learn more about aliases from this tutorial.

Notes-to-Click-Position.bmtp (2.1 KB)
