Pass all midi CC in a preset but block CC30

Hello, I am trying to pass all midi CC as they arrive with this preset, the only thing is that I want to block CC30, because I am converting CC30 into program change with swallow ON in another preset

The issue is that my software receive both program change messages with the other translator as well as the CC30 even tho I created a preset with ‘none’ on the output.

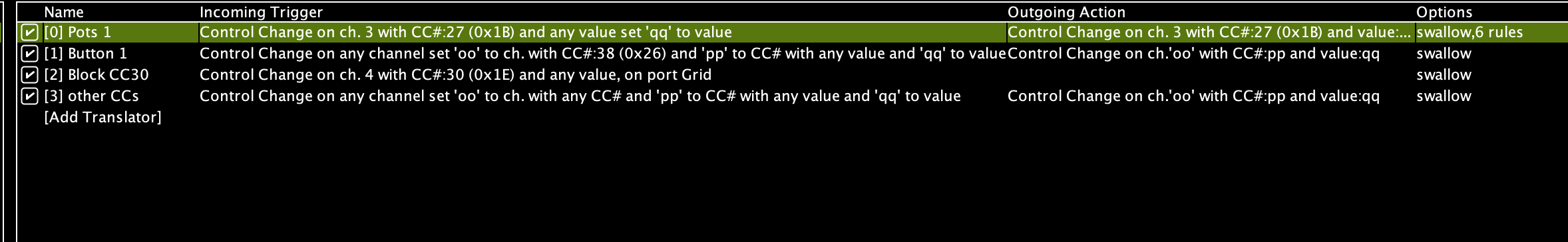

The only way to block CC30 is to uncheck my ‘Other CCs’ translator

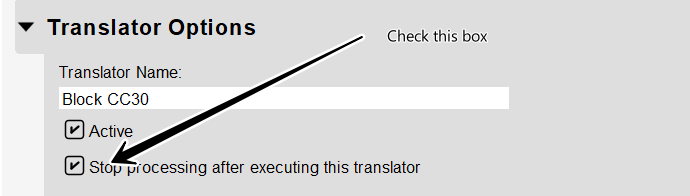

Well, I’d have to see the rules of your translators to be sure but one way to fix it would be to move translator 2 up to position 0 and then put stop processing as an option for that translator.

Translators are processed top to bottom until they reach the end or until you use stop processing in a translator that is triggered.

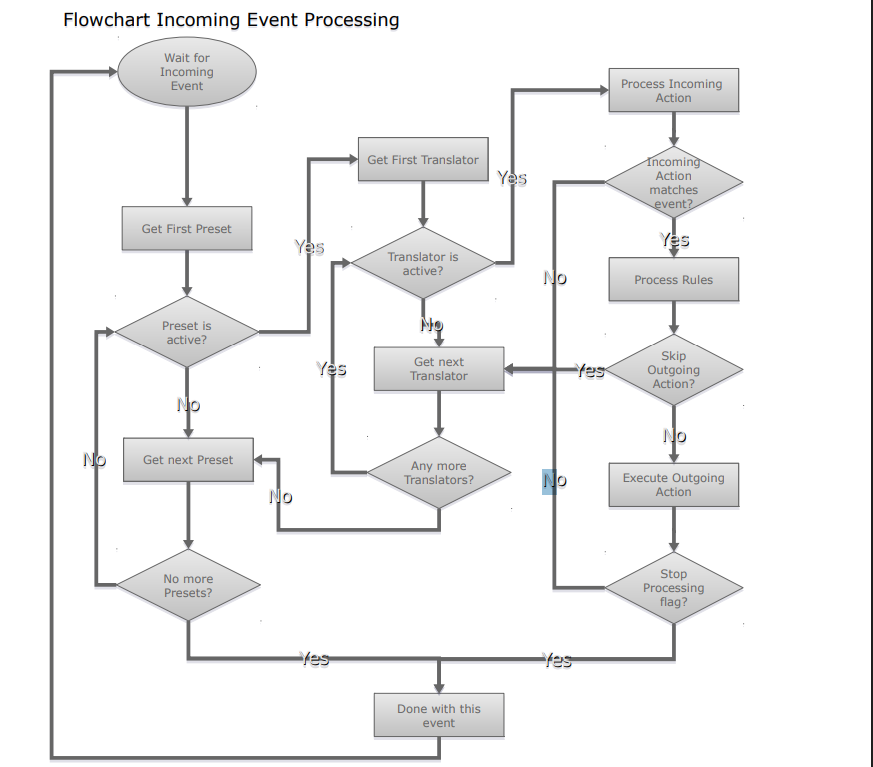

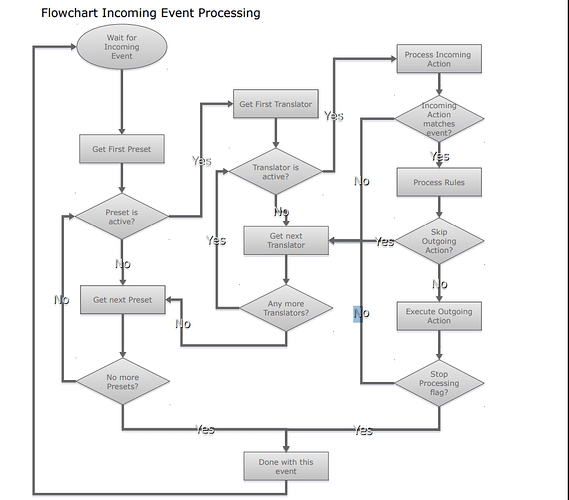

See the flowchart on page 100 of the Bome MIDI Translator Pro manual.

Steve Caldwell
Bome Customer Care


Also available for paid consulting services: bome@sniz.biz
1 Like
